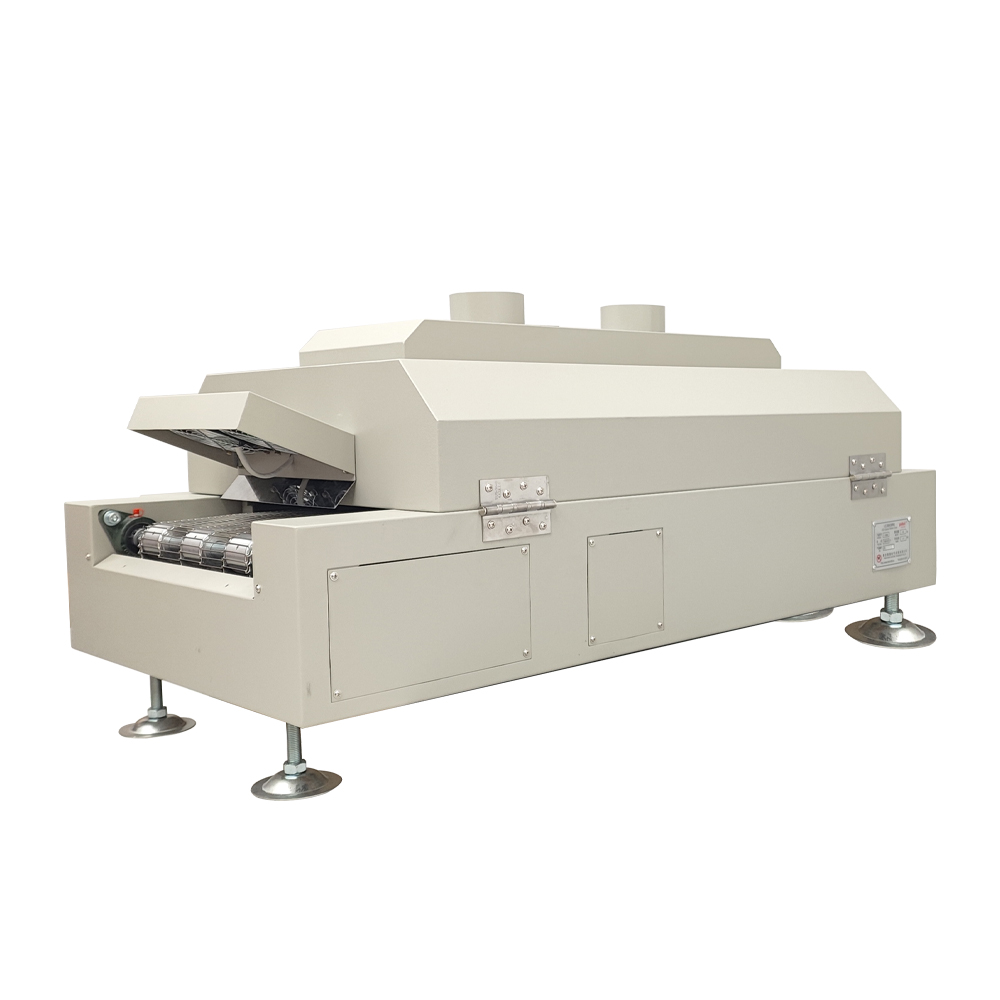

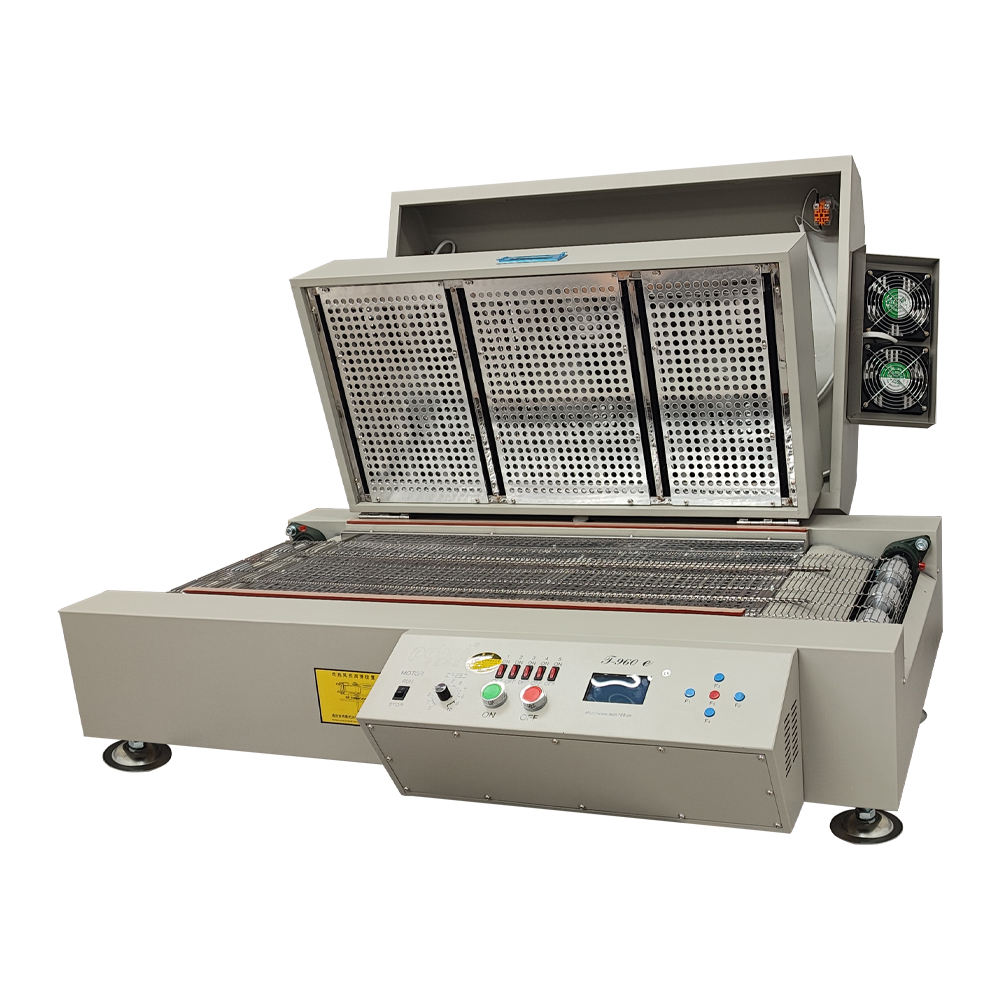

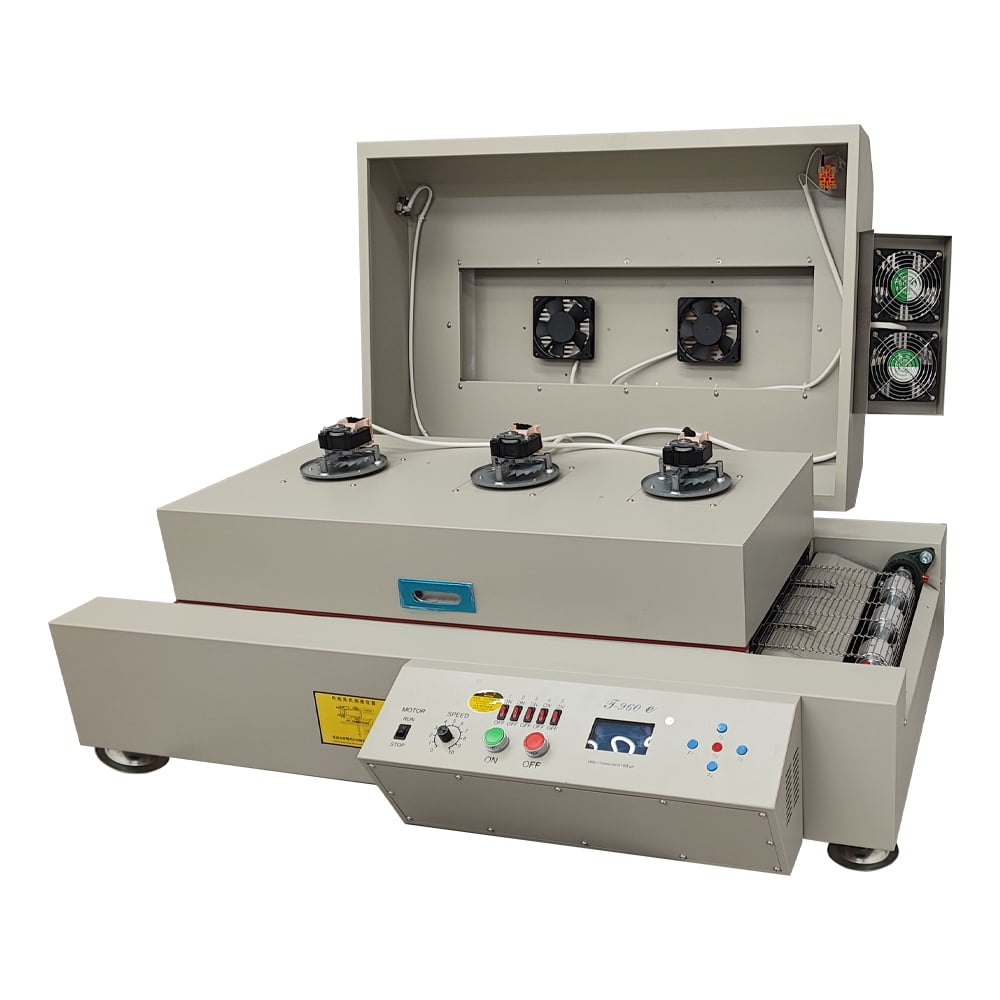

T960E Conveyor Reflow Oven 220V Infrared Hot Air Heating Reflow Oven 960mm Ultra Length Heating Zone

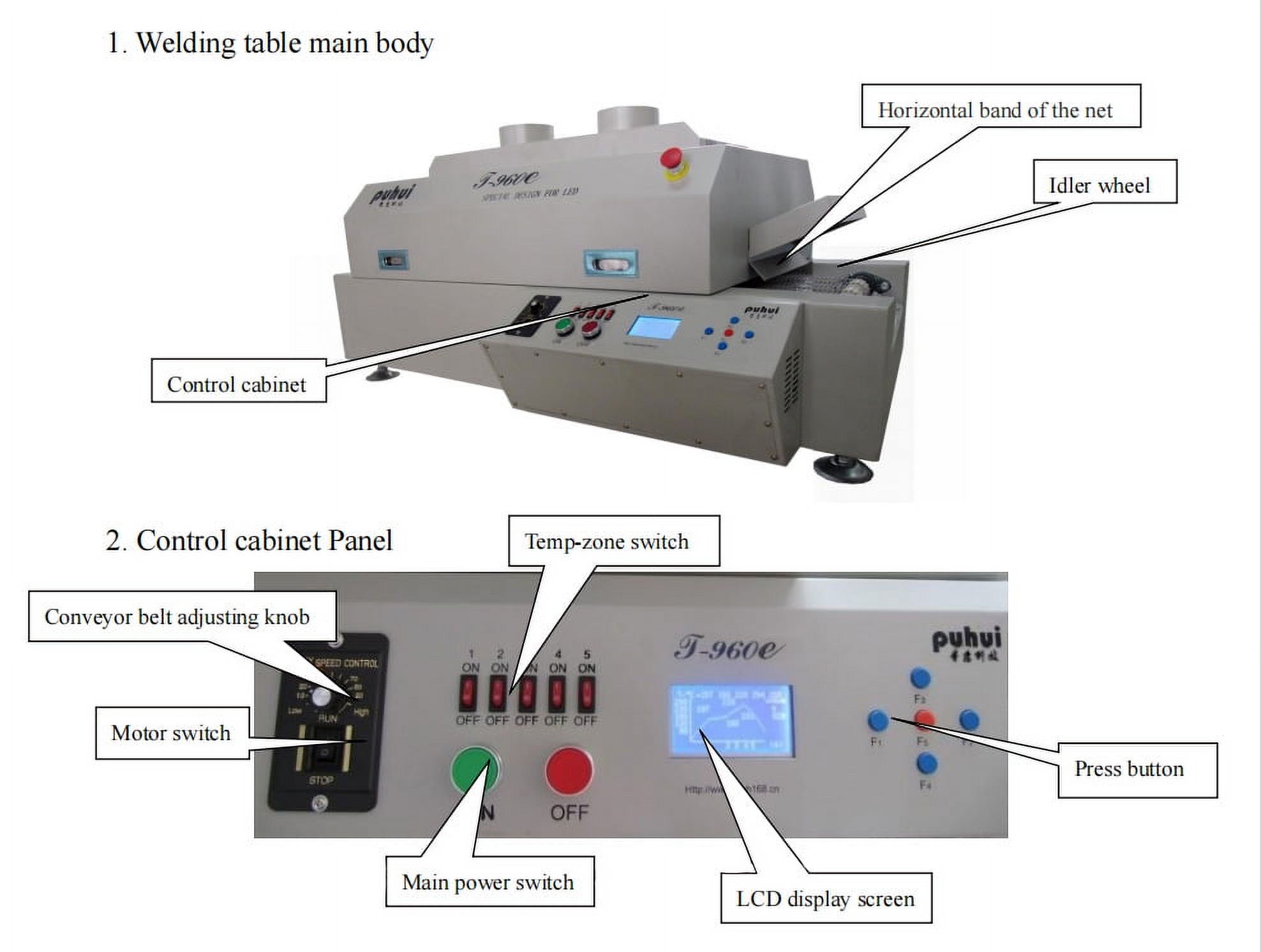

Introduction: <br> Features: <br> 1.Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.<br> 2.Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.<br> 3.Independent cooling zone, to ensure the PCB board of low temperature when the required.<br> 4.Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.<br> 5.Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960e to be easily bench positioned, transported or stored.<br><br> Parameters:<br> The heating zone quantity: upper3/down2<br> The length of the heating zone: 960mm<br> The heating type: IR and hot air heating<br> The cooling zone quantity: 1<br> Maximum width of PCB board: 300MM<br> The operation direction: left→right<br> Delivery options: Net transmission＋chain transmission<br> The speed of conveyer belt: 0-1600mm/min<br> The power supply: 220V<br> Average power: 4.5KW<br> Peak power: 8KW<br> Heating up time: Around 15mins<br> Temperature control range: Room temperature～350℃<br> Temperature control mode: PID closed-loop control<br> Temperature control accuracy: ±1℃<br> PCB temperature distribution deviation: ±2℃<br> Overall dimensions: 120cm*77cm*44cm<br> Machine weight: 91.5kg<br><br> NOTE:<br> Customers need to prepare at least six square millimeters of power cables themselves.<br><br> Daily Maintenance:<br> 1. Keep the electrical control cabinet clean.<br> 2. Check the fan shaft sleeve is in good condition.<br> 3. Check the fan and the electro-motor have abnormal sound.<br> 4. Be sure the fan does work flexibly.<br> 5. Check the air hole if there are abnormal materials.<br> 6. Check the transmission net-belt is in good condition.<br> 7. Check the electrical chest and electrical equipment have abnormal sound.<br> 8. Check the transmission part if it is in good condition and has abnormal sound.<br> 9. Before turn on the machine, please check the working voltage if it is in the safe voltage and if it is stable. Ensure all the parts can work safely and normally. At the same time, when turn on the machine, check the parameters are the same to the last time turn off. When turn off the machine, do not let the transmission belt in the hot area, please turn off the temperature and when cool down well and stop the transmission belt.<br> 10. Lubricate the driving rolls. Put lubricating oil every two months.<br> 11. The motor works in high temperature for long time, please put lubricating oil twice a week or more, ensure the motor can work normally.<br> 12. Clean the residual goods on the fan blade and motor timely. Or the circuit ages will lead to short circuit and damage the fan.<br> 13. Be sure the machine contacts the earth when use five-wire system.<br><br> Item Number: <br> 022606-LED SMT Reflow Oven T-960e 220V

• This machine selects IR and hot air heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
• This machine is equipped with the crawler-type and five temperature zone heating systems, and each temperature zone uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.
• Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.

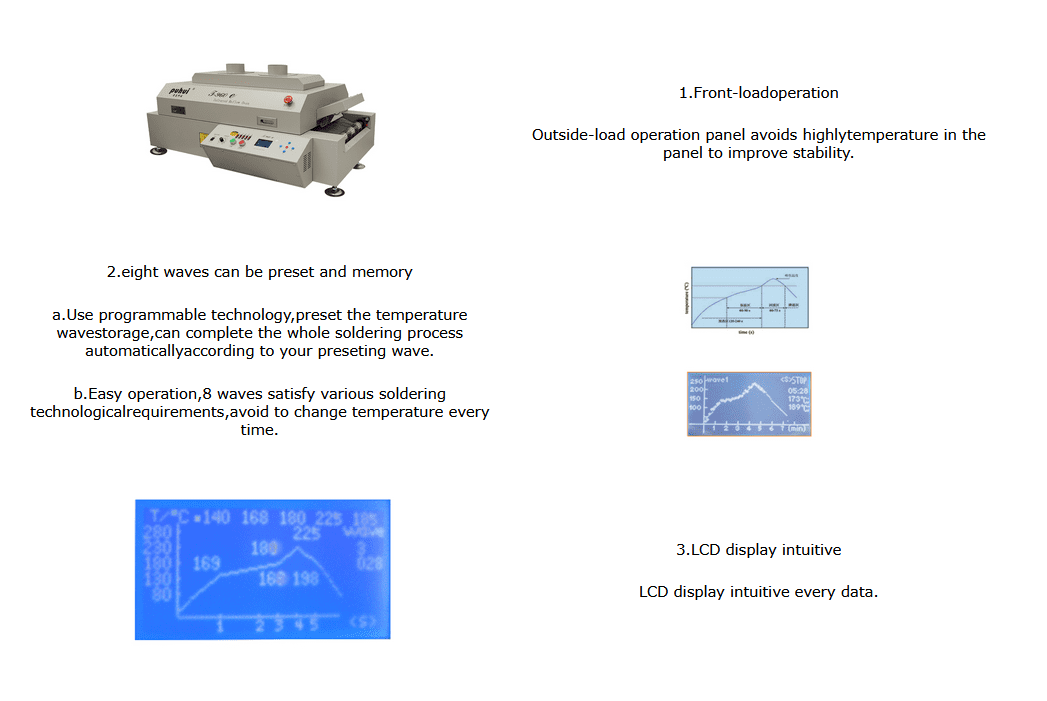

• Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
• Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.

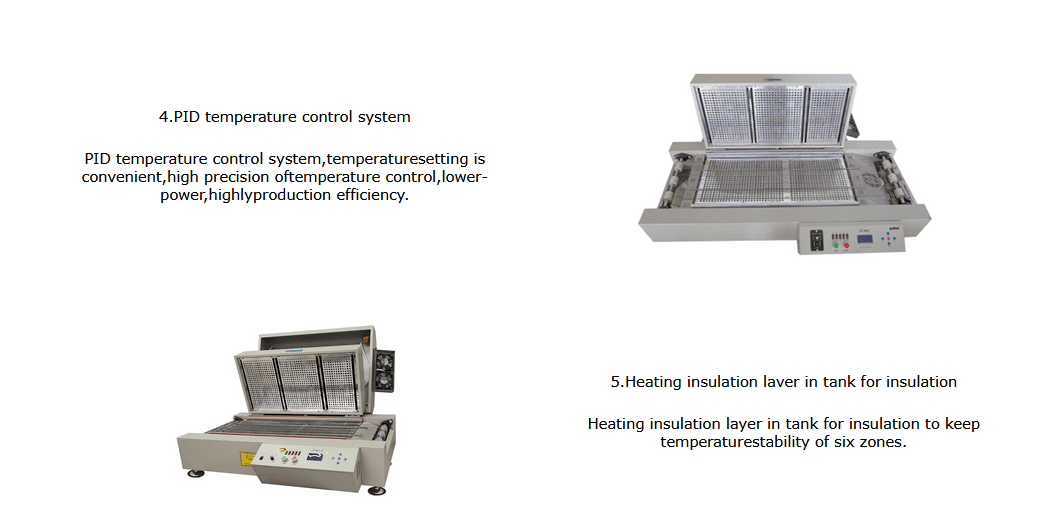

• Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
